Data Streams

Data Streams

• Standard Input

  • stdin is inherited from the parent process

• Standard Output

  • stdin is inherited from the parent process

• Standard Error

  • typically used by programs to output error messages or diagnostics

Linux Standard Streams

• Text output from the command to the shell is delivered via the stdout (standard out) stream.

• Error messages from the command are sent through the stderr (standard error) stream.

• Because error messages and normal output each have their own conduit to carry them to the terminal window, they can be handled independently of one another.

Streams ​are handled like files

• Each file associated with a process is allocated a unique number to identify it. This is known as the file descriptor. Whenever an action is required to be performed on a file, the file descriptor is used to identify the file.

• These values are always used for stdin, stdout, and stderr:

  • 0: stdin​
  • 1: stdout
  • 2: stderr​

File Descriptors

ls -lah /dev/{std*,fd}

lrwxrwxrwx 1 root root 13 Mar  6 08:34 /dev/fd -> /proc/self/fd
lrwxrwxrwx 1 root root 15 Mar  6 08:34 /dev/stderr -> /proc/self/fd/2
lrwxrwxrwx 1 root root 15 Mar  6 08:34 /dev/stdin -> /proc/self/fd/0
lrwxrwxrwx 1 root root 15 Mar  6 08:34 /dev/stdout -> /proc/self/fd/1

• /proc is a filesystem through which the kernel reports various information to processes. It's mostly for information about processes, hence the name “proc[esses]”. For each running process, there's a subdirectory /proc/<PID> where <PID> is the process ID.

Pseudo Terminal

jovyan@jupyter-seb-20blair:~$ ls -lah /proc/self/fd
total 0
dr-x------ 2 jovyan users  0 Mar  6 09:32 .
dr-xr-xr-x 9 jovyan users  0 Mar  6 09:32 ..
lrwx------ 1 jovyan users 64 Mar  6 09:32 0 -> /dev/pts/0
lrwx------ 1 jovyan users 64 Mar  6 09:32 1 -> /dev/pts/0
lrwx------ 1 jovyan users 64 Mar  6 09:32 2 -> /dev/pts/0
lr-x------ 1 jovyan users 64 Mar  6 09:32 3 -> /proc/170/fd

• /dev/pts is a pseudo terminal simulated by programs like SSH.

• It is associated with the special directory available only in the kernel created by Linux.

• Every unique terminal window is related to a Linux pts entry in the /dev/pts system.

Streams ​are handled like files

• Should a process care whether its output is going to the terminal or being redirected into a file?

• Can it even tell if its input is coming from the keyboard?

• Or is being piped into it from another process?

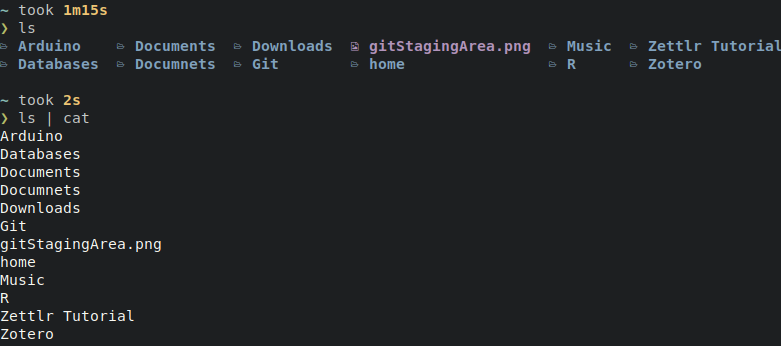

ls stdout and piped |

​The ls command behaves differently if its output (stdout) is being piped, |, into another command. It is ls that switches to a single column output, it is not a conversion performed by cat.

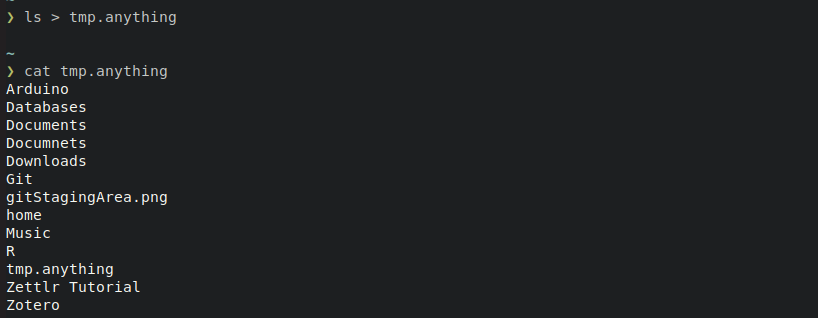

ls redirection > or >>

ls does the same thing if its output is being redirected, >.

Redirecting stdout and stderr Pt1

The first line of the script echoes text to the terminal window, via the stdout stream. The second line tries to access a file that doesn’t exist.

After creating the executable, we can see that both streams of output, stdout and stderr, have been displayed in the terminal window.

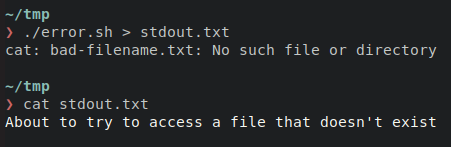

Redirecting stdout and stderr Pt2

Can we redirect these messages from error.sh

> redirects stdout but not stderr as the preceding line shows when the redirected output cat stdout.txt.

In fact, the > symbol works with stdout by default. You can use one of the numeric file descriptors to indicate which standard output stream you wish to redirect.

Numeric redirection

• To explicitly redirect stdout use this redirection instruction, 1>

• To explicitly redirect stderr use this redirection instruction, 2>

Redirecting both 1 and 2

• Because both stdout and stderr are redirected to files there is no visible output in the terminal window.

• We are returned to the command line prompt as though nothing has occurred.

Redirection of 1 and 2

• 2>&1: This uses the >& redirect instruction. This instruction allows you to tell the shell to make one stream go to the same destination as another stream.

• In this case, we’re saying "redirect" stream 2, stderr, to the same destination that stream 1, stdout, is going to.

Stdin

• < special symbol used for

  $ cat < foobar.txt


• Here the contents of foobar.txt is redirected to stdin

  $ cat 0< foobar.txt


EOF

• The redirection operators << and <<- both allow redirection of lines contained in a shell input file, known as a "here-document", to the input of a command.

  command << delimiter
  document
  delimiter


  $ wc -l << EOF
  This is a simple lookup program for the best lectures on NOS.
  Seb
  EOF


  Output:

  2
