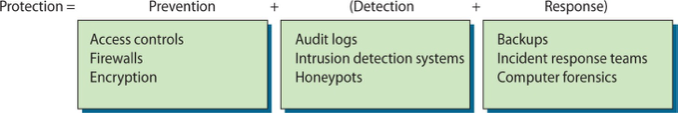

Operational Model of Cybersecurity

101

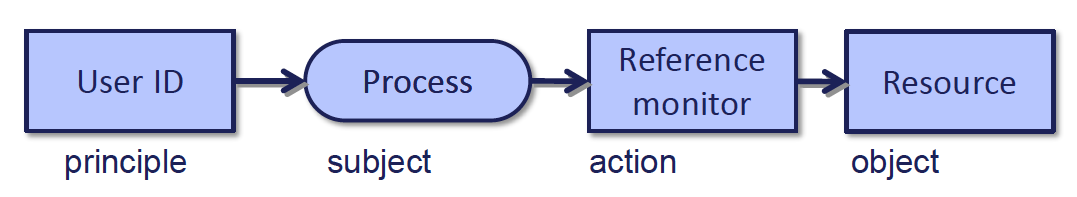

• A principal is an entity that has an authenticated identity
• A subject is an entity that acts on behalf of a principal, within a computer system.
• An action can read, write, create, delete objects or their metadata. For computer programs, actions can also execute.
• An object is a resource that an action is to be performed upon

What is Access Control?

• It's the process of determining and enforcing who can access what resources in a system.

  • Access Control the ability to control whether a subject (such as an individual or a process running on a computer system) can interact with an object (such as a file or hardware device)

• Importance: Protects sensitive information, prevents unauthorised access, and ensures compliance with regulations.

• But, does it confused with Authentication?

Authentication vs. Access Control: Not the Same!

Authentication deals with verifying the identity of a subject.

• Authentication: Think of it as logging into your computer with a username and password.

  • The system (authentication) checks your credentials to ensure you are who you say you are. Just like showing your ID to prove your identity.

• Access Control: Now, once you're in, what can you do?

  • AC determines what you can access on the computer or network.
    • Just because you logged in doesn't mean you can access all files and applications.

AC Principles

• Cybersecuity: CIA - Confidentiality, Integrity, Availability

The four parts of access control are:

• Identification - Who: is asking to access the asset?

• Authentication - Can: the requestor’s identity be verified?

• Authorisation - What :exactly, can the requestor access? And what can they do?

• Accountability - How can actions be traced to an individual?

  • Associating actions with users for later reporting and research is known as accountability.

AC Principles

These four parts are divided into two phases:

• The policy definition: This phase determines who has access and what systems or resources they can use. The authorisation definition process operates in this phase.

• The policy enforcement: grants or rejects requests for access based on the authorisations defined in the first phase. The identification, authentication,
  authorisation execution, and accountability processes operate in this phase.

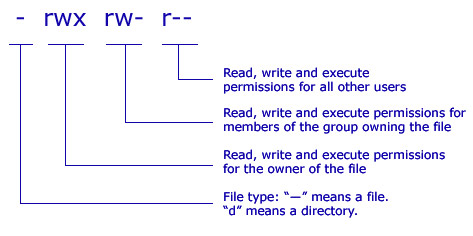

Example: Linux Permissions

Access Control Models

1. Discretionary Access Control (DAC)

2. Mandatory Access Control (MAC)

3. Rule-Based Access Control (RuBAC)

4. Role-Based Access Control (RBAC)

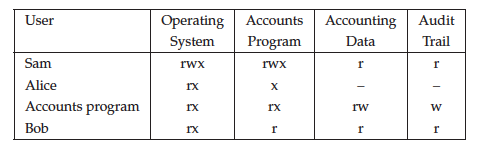

5. Access Control Lists(ACL)

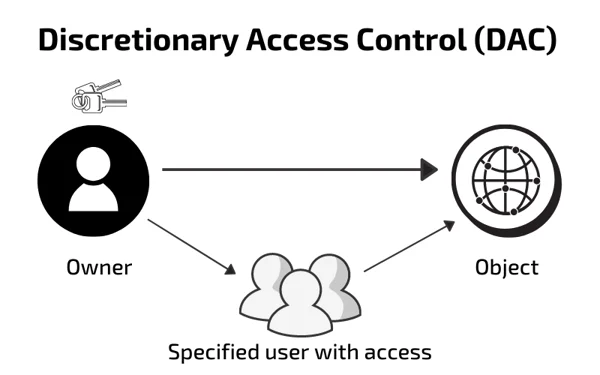

1. Discretionary Access Control (DAC)

• Access rights are determined by the resource owner.
  • Per user, not per file.
• Mechanism: Owners grant or deny access to users based on their discretion.
  • Sys Admin is the boss (or owner of the file)
• Characteristics:
  • Flexibility: Owners have control over their resources.
  • Vulnerability: Prone to accidental or malicious misuse.
  • Users can set read, write, and execute permissions for files they own.

DAC: E.g.

1. OS: Permission settings in Unix/Linux.

2. App:

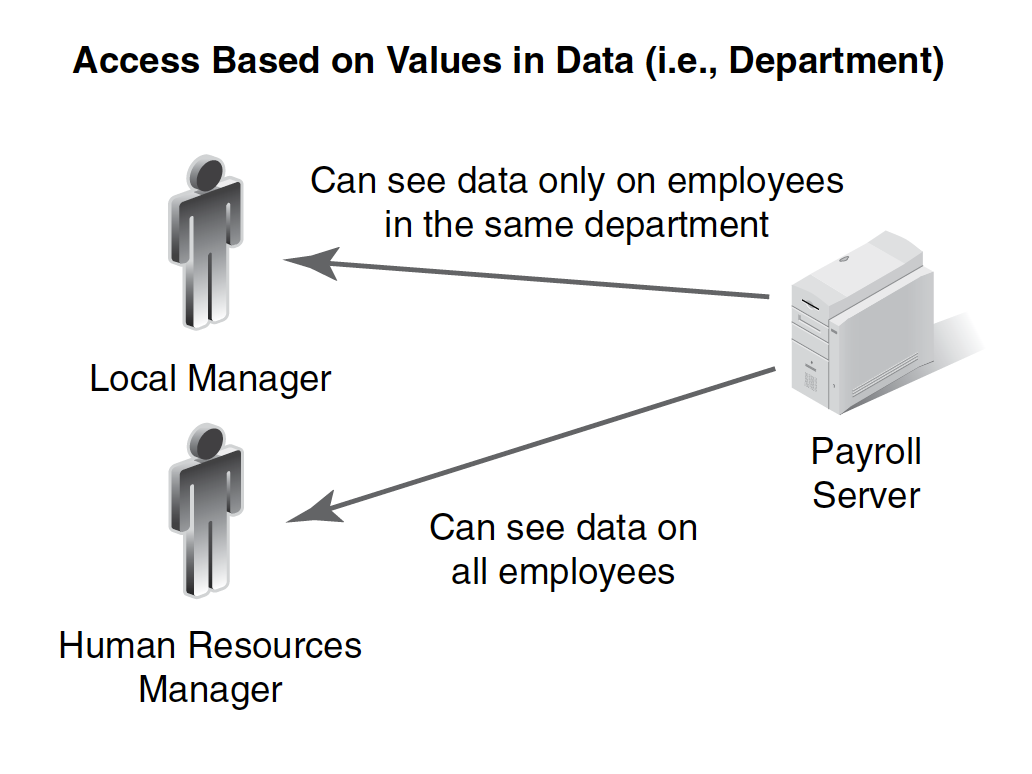

   • Application-based DAC denies access based on context or content.
   • ATM's available options to a user.

DAC: Cont'

Scenario: Ameer owns a file and grants read access to Bob but denies access to Tim.

2. Mandatory Access Control (MAC)

Access rights are regulated by a central authority based on multiple levels of security.

• Mechanism: Users and resources are assigned security labels. Access is granted based on these labels and policies.

• SysAdmin is no longer the boss:

• Characteristics: High security: Strict and non-discretionary control.

• Complexity: Requires careful planning and management.

• Occasionally synonymous with MLS - Multi-Level Security (Unclassified, Confidential, Secret, Top Secret)

MAC Cont'

• Scenario: Bob has a "Secret" clearance and can access "Secret" documents, but not "Top Secret" ones.

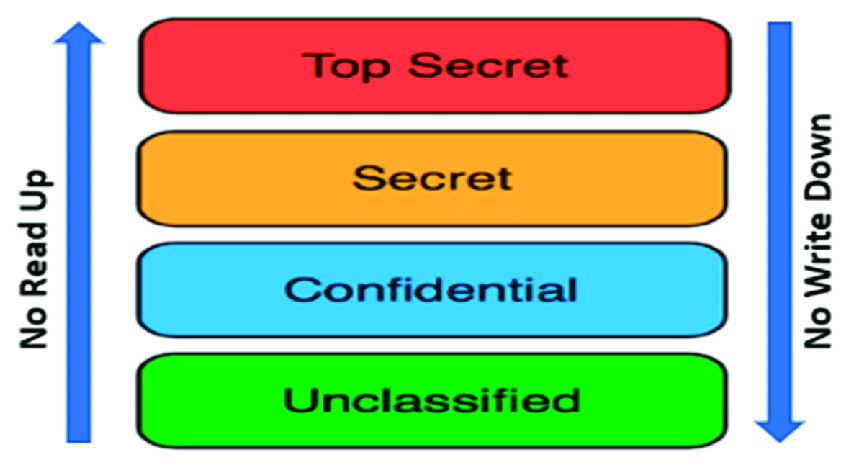

• Example: Military systems with classified information, e.g. Bell LaPadula

  • Users need the appropriate clearance level to access certain documents.
  • System and owner collaboration determines access.
  • Bell-LaPadula model compares subject and object labels to grant/deny access

Activity

In pairs so a quick bit of research on Mandatory Access Control (MAC) to answers in small groups or post them online.

1. Where is MAC used in the real world? Give one example.
2. Why might an organisation choose MAC instead of other access models?
3. What could be a downside of using MAC?

3. Rule-Based Access Control (RuBAC)

• Access is based on a set of pre-defined rules or policies, rather than roles or individual user attributes.

• Provides fine-grained access control by enforcing rules that specify conditions under which access is granted or denied.

• Data owners make or allow the rule.

RuBAC:Key Features

• Rules and Policies: Access decisions are made based on a comprehensive set of rules.
• Conditions: Rules can include conditions such as time of day, IP address, and user attributes (PAM in Linux).
• Automation: Automatically enforces policies without manual intervention.

System Example: PAM (Pluggable Authentication Modules)

• It allows system administrators to define and manage how different applications or services authenticate users without needing to modify the applications themselves.
• By using different methods (like passwords, fingerprints, or two-factor authentication)

Activity: In pairs

• Find one real example where rule-based access is used?
• What kind of rules could a system use to allow or block access?
• What are the benefits and challenges of using rules instead of roles?

4. Role-Based Access Control (RBAC)

• It bases access control approvals on the jobs the user is assigned
• Simplifies administration and enhances security by grouping permissions by role rather than assigning them individually.

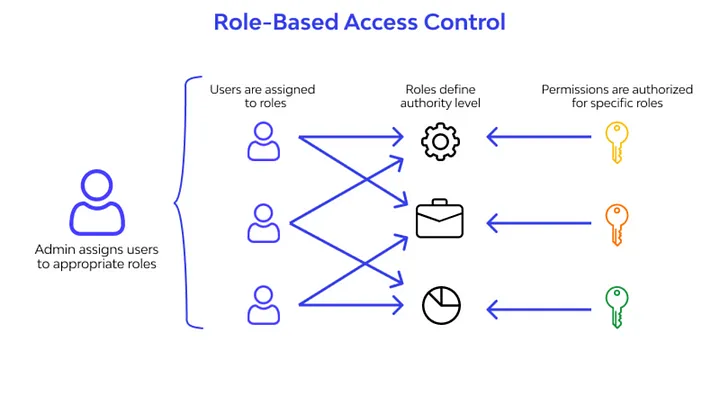

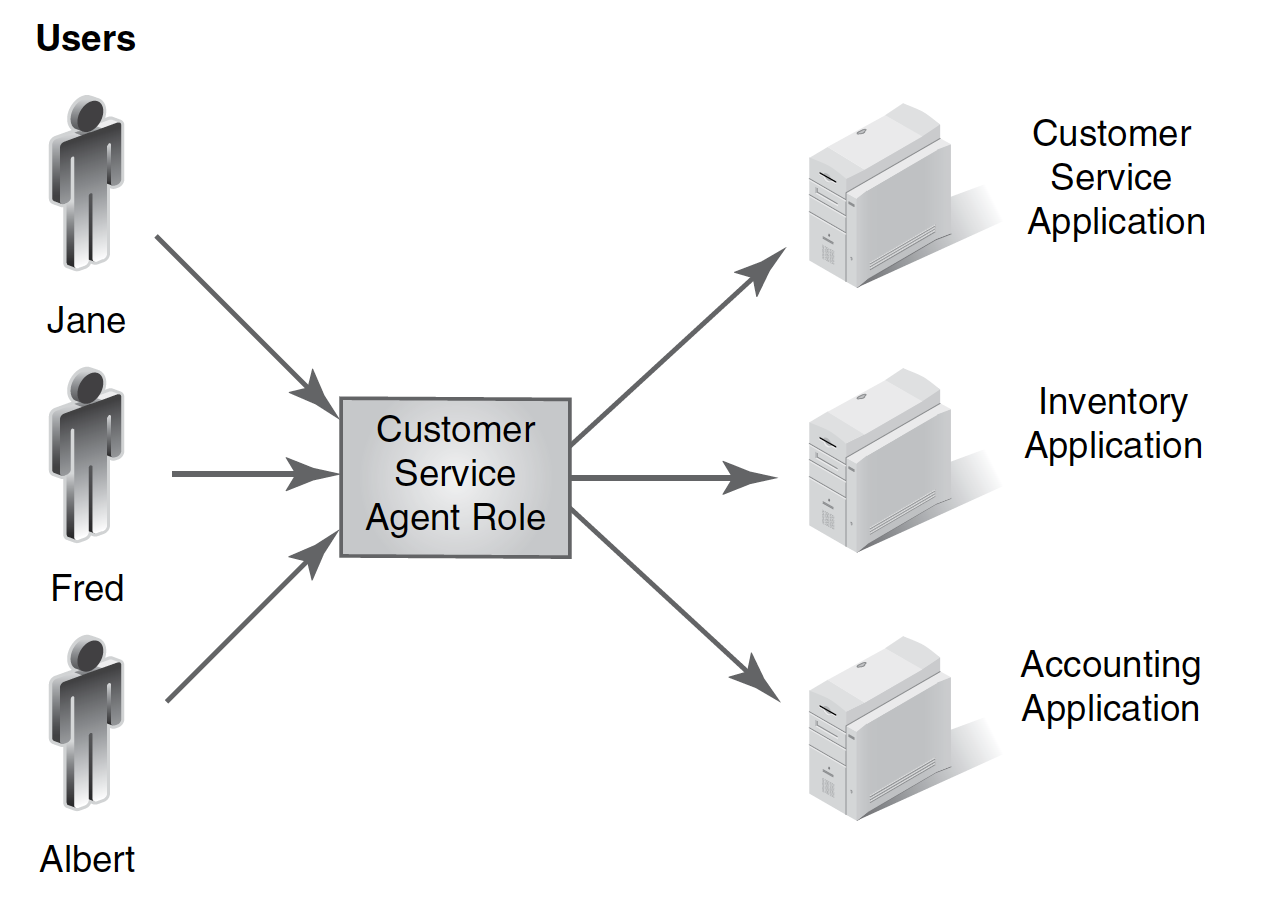

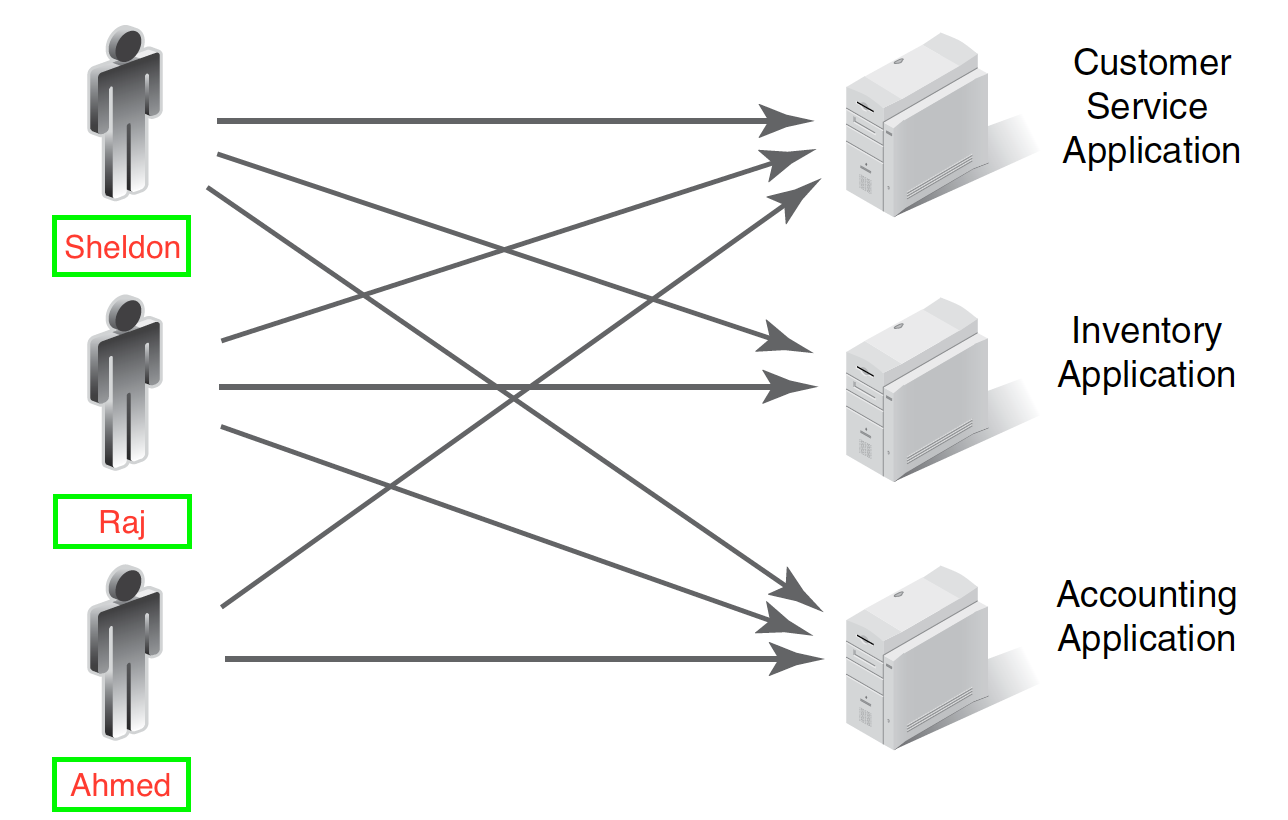

RBAC: Example

• Role Engineering: Before you can assign access rules to a role, you must define and describe the roles in your organisation.
• Risks: Overgeneralising.
  • Which leads to "a need-to-know violation"

5. Access Control Lists(ACL)

• A set of rules that defines what actions (e.g., read, write, execute) specific users or groups can perform on system objects (like files or network devices).

• Used in operating systems (like Linux) and network devices (such as routers and firewalls) to enforce access permissions.

Key Features of ACLs:

1. Granular Control: Allows specific access permissions for individual users or groups.
2. Flexibility: Multiple rules can be applied to the same resource, allowing for fine-tuned access management.
3. Application: Common in both file system permissions (e.g., Unix/Linux) and network security.

• E.g.:

  • setfacl -m u:username:rwx /path/to/file

    • This command grants a user read, write, and execute permissions on a file

  • permit tcp any any eq 80 : Allows HTTP traffic on port 80

Effects of Breaches in Access Control

Failure to implement robust access control

• Disclosure of sensitive information and data integrity corruption
• Loss of intelligence and system and process failure
• Short-term and long-term attacks

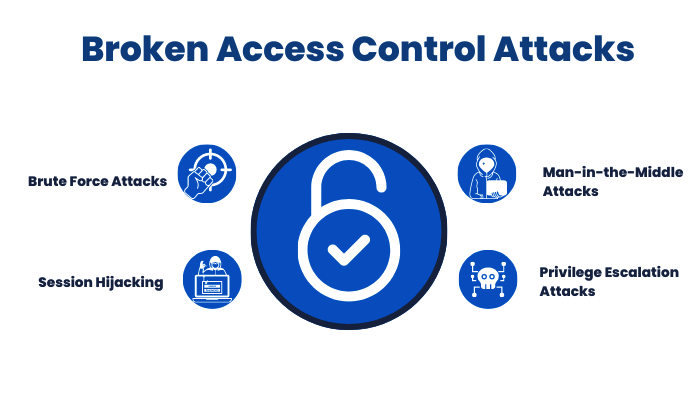

Threats to Access Controls

• Challenges: threats evolve all the time
  • The list can never be complete.

Centralised and Decentralised Access Control

1. Centralised Access Control: CAC
Access control decisions and enforcement are managed from a single, central point or authority;

• Single Point of Control
• Consistency: uniformly applied across all users and systems
• Ease of Management: easily update or change policies
• Scalability: Suitable for large organisations

Pros & Cons

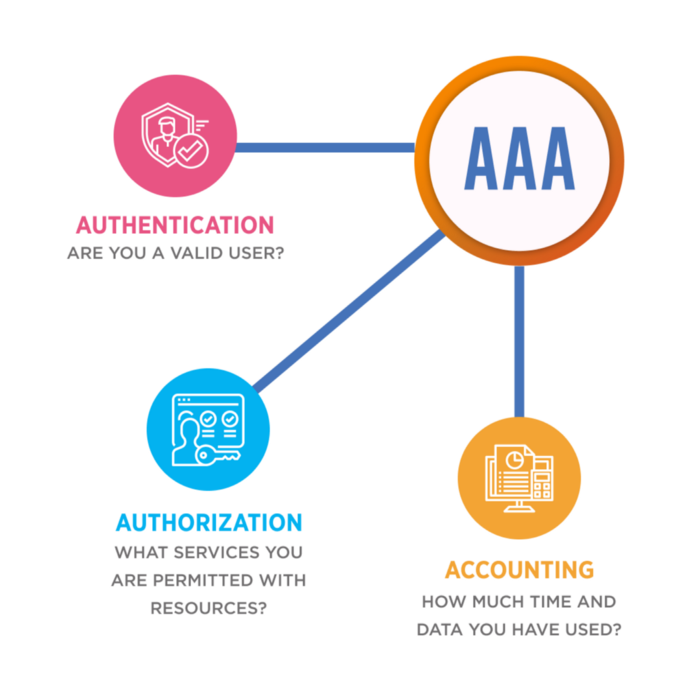

CAC and AAA

• CAC is applied and enforced through the use of AAA servers
  • Less Administration Time: maintained on a single host.
  • Reduced Design Errors: Consistent formats
  • Simplified Training: Only one system needs to be learned by admin.
  • Improved Compliance Auditing: access requests are handled by one system.
  • Fewer Help-Desk Calls: A consistent user interface reduces confusion.


Types of AAA Servers:

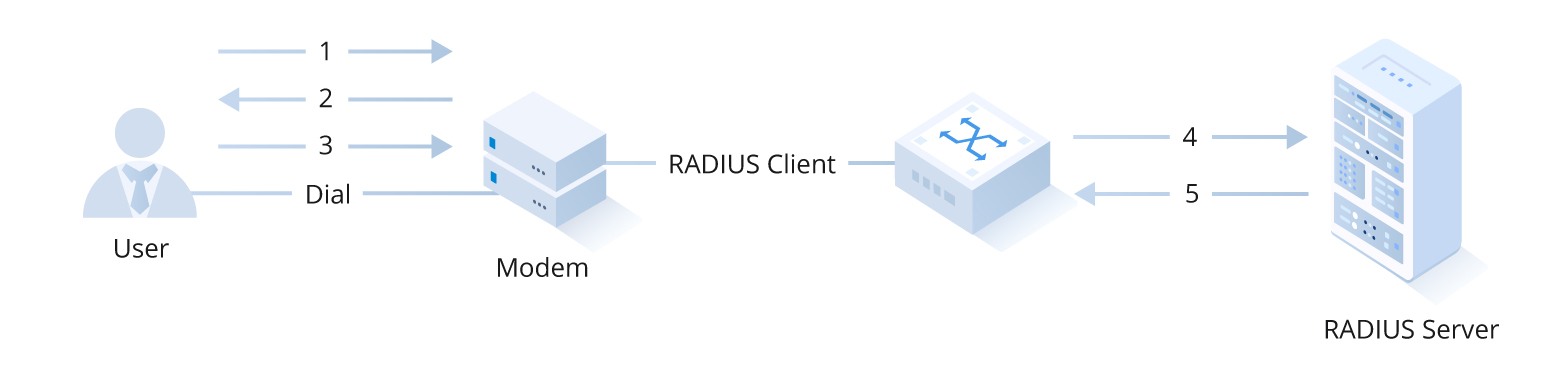

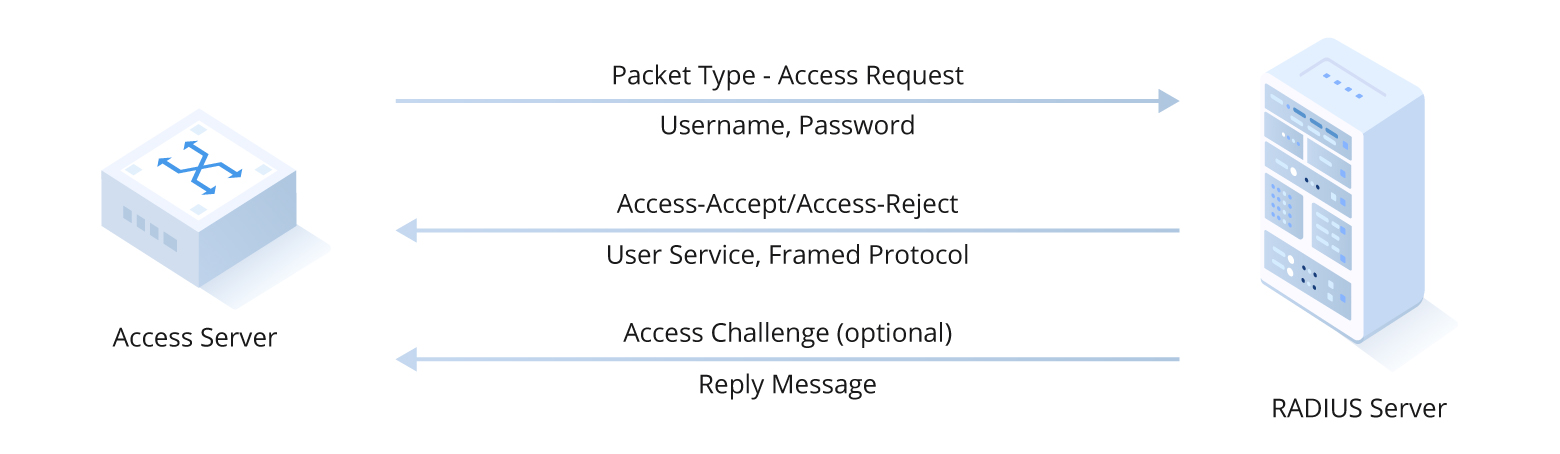

A. Remote Authentication Dial-In User Service (RADIUS): networking protocol that provides centralised AAA management (passwords, tokens, certificates)

• Client Configuration File: Contains client address and shared secret for transaction authentication.
• User Configuration File: Contains user identification, authentication data, and connection/authorisation information.


Others

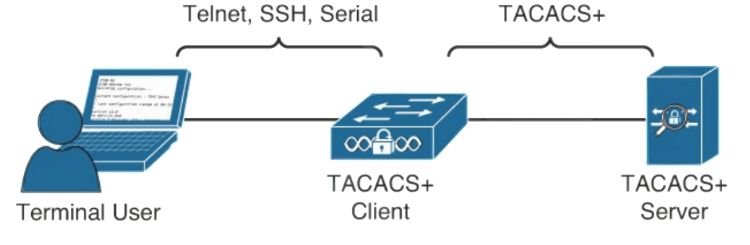

• TACACS+
• DIAMETER
• SAML

Let's do some reseach for SAML (Security Assertion Markup Language)?

Centralised and Decentralised Access Control

2. Decentralised Access Control DeAC

• is to handle access control decisions and administration locally.
• access control is in the hands of the people (e.g.managers who are closest to the system users)
• Eliminates the single-point-of failure problem.
• BUT, Loss of standardisation and to overlapping rights.

Decentralised Access Control DeAC: common examples

1. Password Authentication Protocol (PAP): Uses cleartext usernames and passwords.
2. Challenge-Handshake Authentication Protocol (CHAP): Hashes passwords with a one-time challenge to prevent replay attacks.
3. OATH (Open Authentication): Over 30 organisations contribute to developing authentication standards:
   • HMAC-based One-Time Password (HOTP): Uses an authentication server for generating one-time passwords.
   • Time-based One-Time Password (TOTP): Combines a time stamp with a hashed value to enhance security.

HMAC: Hash-based Message Authentication Code

Thoughts:

• Policies alone do not suffice. Employers must clearly communicate what employees can and cannot do.

• The best way to do this is through training. When systems or policies change, those changes should be communicated to employees.

PAM: Pluggable Authentication Modules

• It is a flexible system used to manage authentication for applications and services.

• Provides a way to centralise and standardisa authentication methods, allowing the system to enforce authentication policies across different services.

• Why PAM Matters

  • Modular Design: Different authentication modules (e.g., password, token, biometrics) can be easily added or removed.
  • Service-Specific Control: PAM configurations allow different services (e.g., SSH, sudo) to have their own tailored authentication rules.
  • Security: Enforces consistent security policies and simplifies multi-factor authentication setup (MFA).

How PAM Works:

• PAM Modules: Each module performs a specific task (e.g., authentication, account management).

• Control Flags: Determines how PAM processes multiple modules. Flags include:

  Flag	Meaning	Behaviour
  required	Must pass	Login fails if it doesn’t, even if later modules succeed
  requisite	Must pass or stop	Authentication stops immediately if it fails
  sufficient	One success is enough	Skips the rest if it passes
  optional	Minimal impact	Used for logging or secondary checks

Example PAM Configuration:

• Located in /etc/pam.d/
• Each service has a configuration file (e.g., login, sshd).

auth required pam_unix.so
auth sufficient pam_google_authenticator.so

Further reading about PAM:

• IBM-PAM
• RedHat-PAM

Lab

• Access Control and PAM Lab:

• Extra:TryHackMe Lab for Brokern Access Control
